How to Prevent Notification of Unnecessary SNMPTRAPs During SNMPTRAP Monitoring

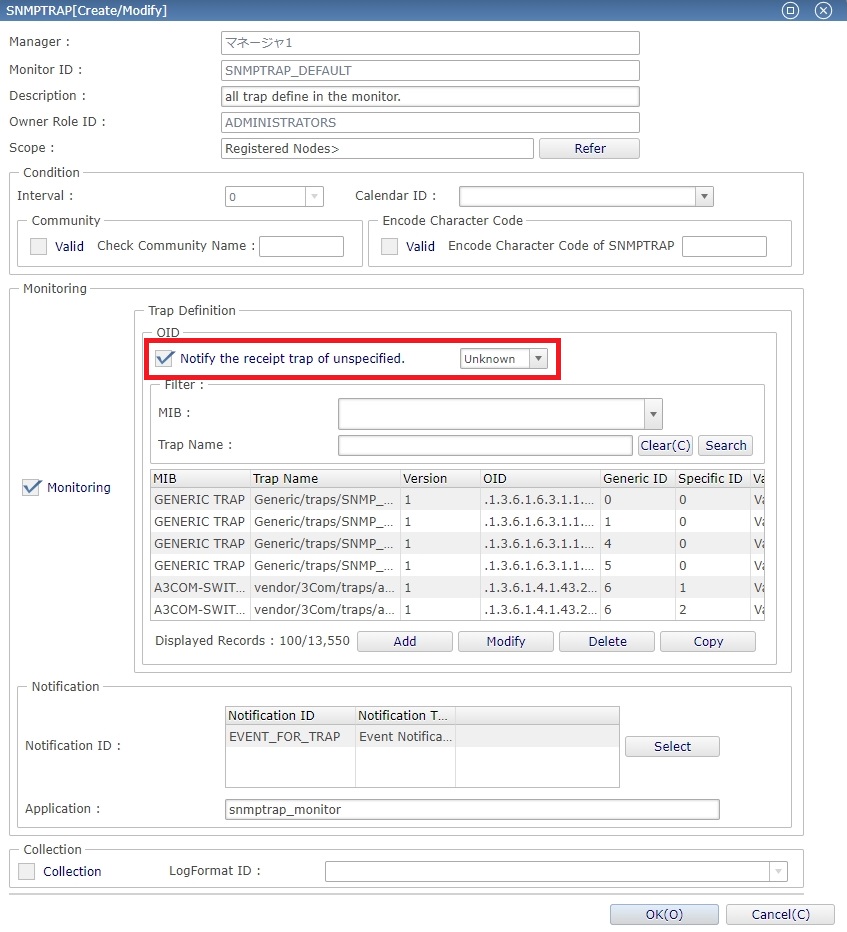

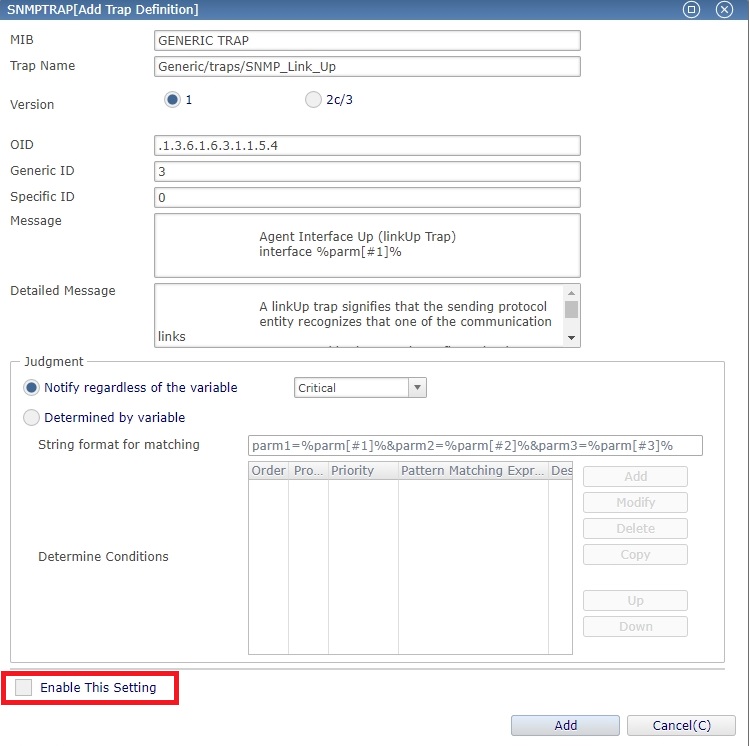

Hello. Hinemos sends a notification when receiving an SNMPTRAP which is not included in the trap definitions during SNMPTRAP monitoring, in accordance with its specified priority, if the checkbox that says “Notify the receipt trap of unspecified” is checked.   In this case, if you delete or disable the definition of a particular SNMPTRAP, about which you do not want to send a notification even when receiving it, Hinemos will judge it as an unspecified trap and send a notification in accordance with the specified priority. 監視結果↓   When the checkbox that says “Notify the receipt trap of unspecified” is checked, you can prevent notification of a particular SNMPTRAP by configuring the following setting, if you do not want to send a notification even when receiving it.

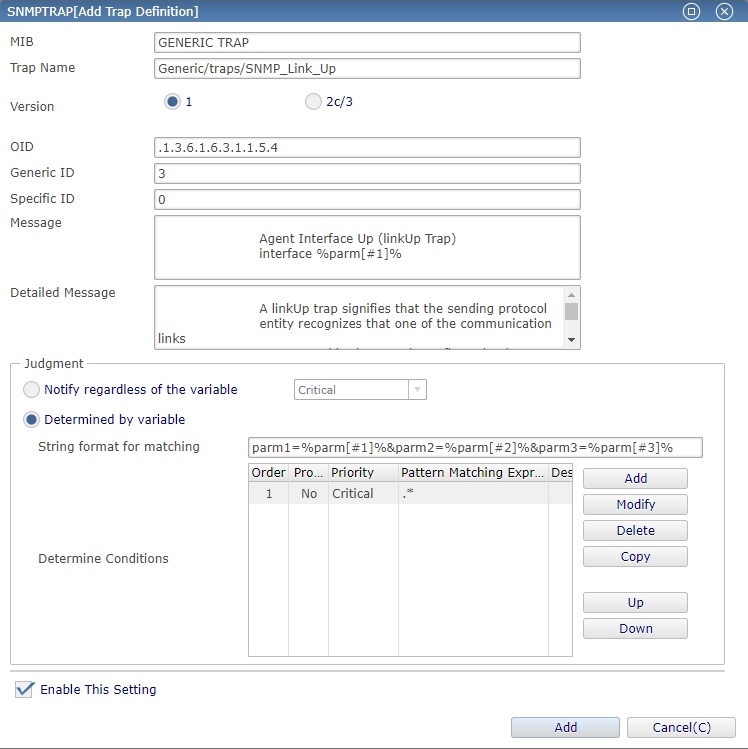

  1. 1. On the SNMPTRAP [Create/Modify] dialog, select the definition which meets the SNMPTRAP, about which you do not want to send a notification, from the list of trap definitions, and then press the [Modify] button.

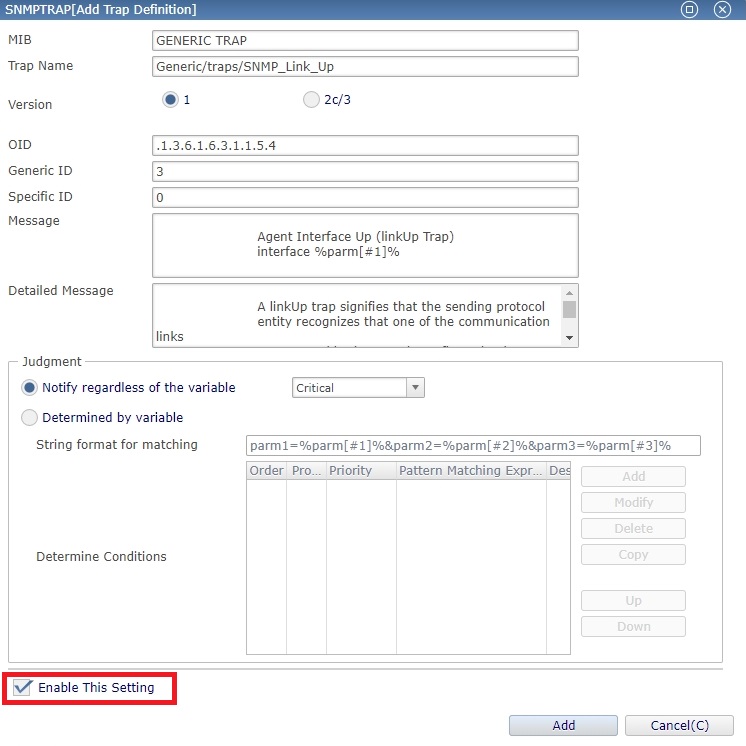

  2. 2. On the SNMPTRAP [Add Trap Definition] dialog, check the checkbox that says “Enable This setting”.

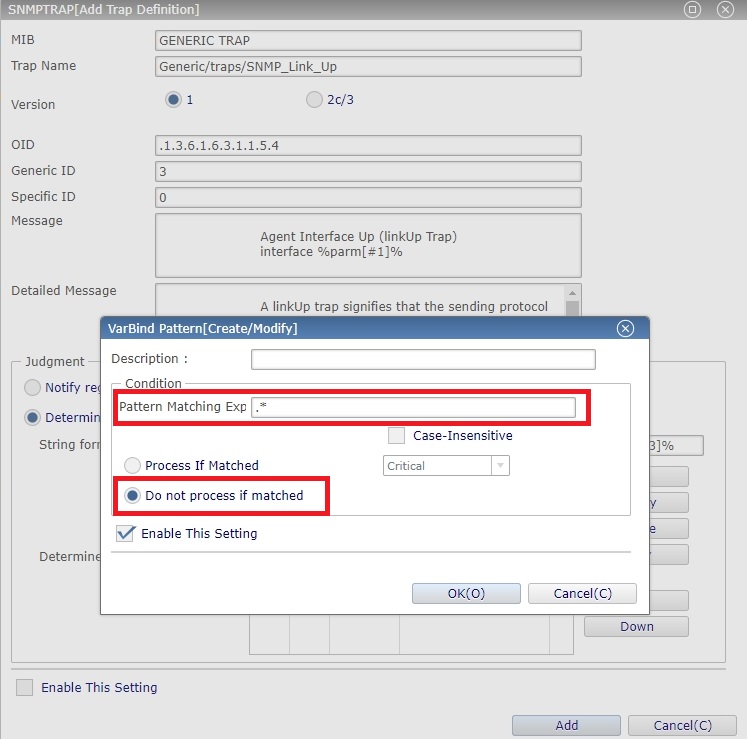

  3. 3. On the SNMPTRAP [Add Trap Definition] dialog, select “Determined by variable” in the Judgement field, and then add the following pattern matching expression.
Pattern matching expression:.* Select “Do not process if matched”. ※ *Enter any value for other fields.
  Now, let’s see how it works! That’s it for today! Please try it out.
